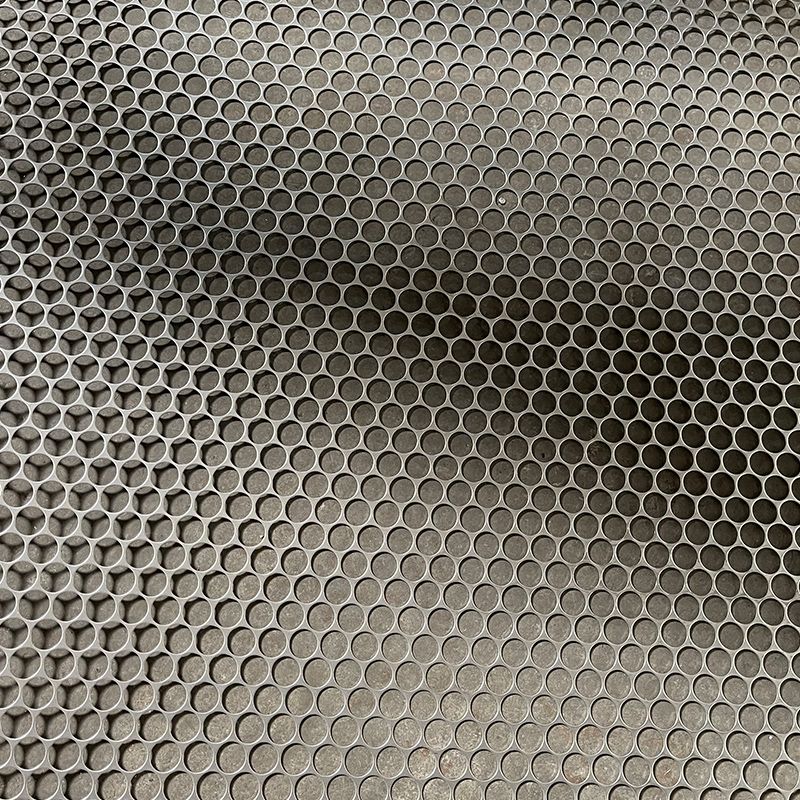

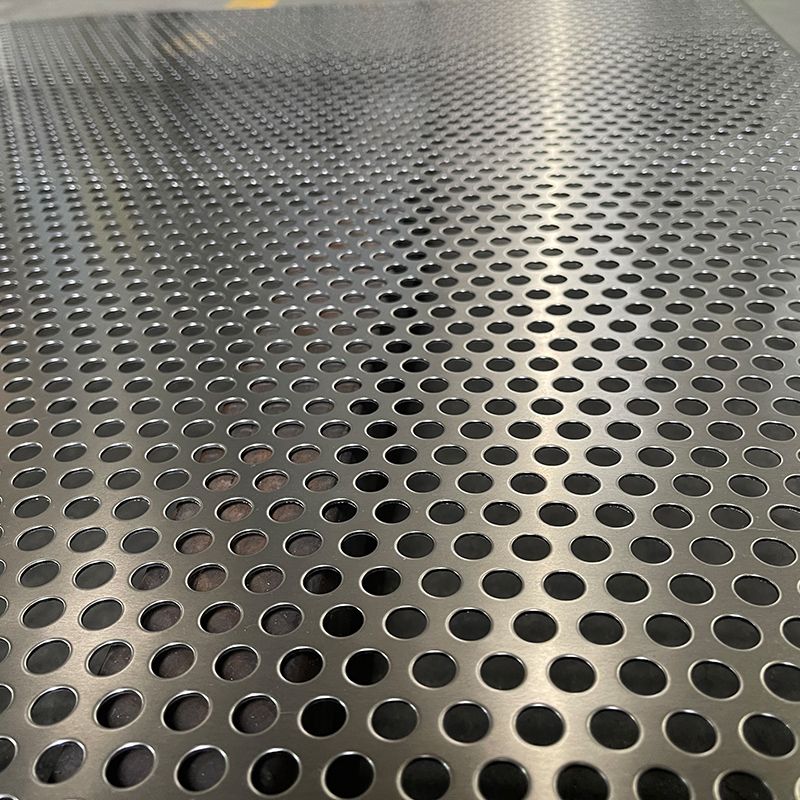

Perforated round hole stainless steel sheets are usually made of 304 or 316 stainless steel. Because it is strong, corrosion resistant and visually appealing, quality perforated stainless steel can be used for a variety of applications.
316 stainless steel round hole perforated sheet is normally used in natural gas/petroleum/oil, aerospace, food and beverage, industrial, cryogenics, architectural, and marine applications. 316 perforated sheet has high strength and excellent corrosion resistance, including in marine or extremely corrosive environments. It is stronger, though less malleable and machinable than 304.
Stainless steel is an alloy material containing chromium, which resists iron oxide formed by interaction with oxygen. This provides excellent corrosion resistance and a glossy finish, which, combined with its low maintenance requirements, makes stainless steel perforated sheets ideal for many applications.
Perforated Round Hole Stainless Steel Sheets
YILIDA has the most advanced CNC punch equipment in China, and the product accuracy can reach+/-0.15MM. At the same time, we provide a series of follow-up processing, and the common surface treatment is polishing. In addition, there are laser cutting, bending, welding, etc.

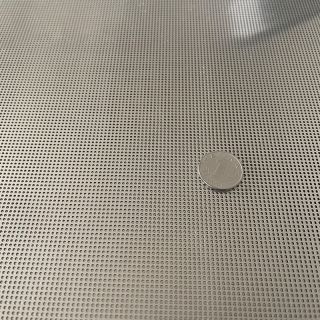

Among them, stainless steel microperforated mesh is widely used in filtration systems such as industrial/chemical industry, medical pharmacy and household appliances. The main characteristics of these products are that the mesh aperture is small (0.03-0.1mm) and the mesh is dense. Therefore, stamping, laser and other processes have certain limitations. YILIDA suggests that etching process can be used to process these products according to their needs. Etching can solve the processing problems of large batch, micro mesh and high density, and won’t affect the material performance, and won’t produce pressure deformation on the surface.
Features
Provides high corrosion resistance without the need for finishes
Sustainable, reusable materials
Recyclable, environmentally friendly materials
Can be coated for a customized appearance and to further increase service life
High strength and hardness allows for safety and protection applications
Clean, smooth, glossy surface
Non-toxic, clean material for food processing applications
Specification
| Round, in 60°staggered rows | |||
| Code | Hole Dia (R)-mm | Pitch(T)-mm | Open Area% |
| R0.8T2 | 0.8 | 2 | 14.6 |
| R1T2 | 1 | 2 | 22.8 |
| R1.2T2.5 | 1.2 | 2.5 | 21 |
| R1.5T3 | 1.5 | 3 | 22.8 |
| R2T3 | 2 | 3 | 40.4 |
| R2T3.5 | 2 | 3.5 | 30 |
| R3T5 | 3 | 5 | 33 |
| R4T6 | 4 | 6 | 40.4 |
| R5T8 | 5 | 8 | 35 |
| R6T9 | 6 | 9 | 40 |
| R8T11 | 8 | 11 | 48.1 |
| R10T13 | 10 | 13 | 53.8 |
| R10T15 | 10 | 15 | 40.4 |
| R20T27 | 20 | 27 | 49.9 |
查看更多
| Round, in 45°staggered rows | |||
| Code | Hole Dia (R)-mm | Pitch(T)-mm | Open Area% |
| R2T6 | 2 | 6 | 17.4 |
| R3T8 | 3 | 8 | 22.1 |
| R4T8 | 4 | 8 | 39.3 |
| R5T9 | 5 | 9 | 48.5 |
| R6T10 | 6 | 10 | 56.5 |
| R7T14 | 7 | 14 | 39.3 |
| R8T18 | 8 | 18 | 31 |
| R12T28 | 12 | 28 | 28.8 |
| R15T40 | 15 | 40 | 22.1 |
| R16T40 | 16 | 40 | 25.1 |
| R26T50 | 26 | 50 | 42.5 |
查看更多
| Round, in straight rows | |||
| Code | Hole Dia (R)-mm | Pitch(T)-mm | Open Area% |
| R2T4 | 2 | 4 | 19.6 |
| R3T6 | 3 | 6 | 19.6 |
| R4T8 | 4 | 8 | 19.6 |
| R5T8 | 5 | 8 | 30.7 |
| R8T12 | 8 | 12 | 39.4 |
| R12T15 | 12 | 15 | 50.2 |
| R15T20 | 15 | 20 | 44.2 |
| R20T30 | 20 | 30 | 34.9 |
| R30T50 | 30 | 50 | 28.3 |
查看更多

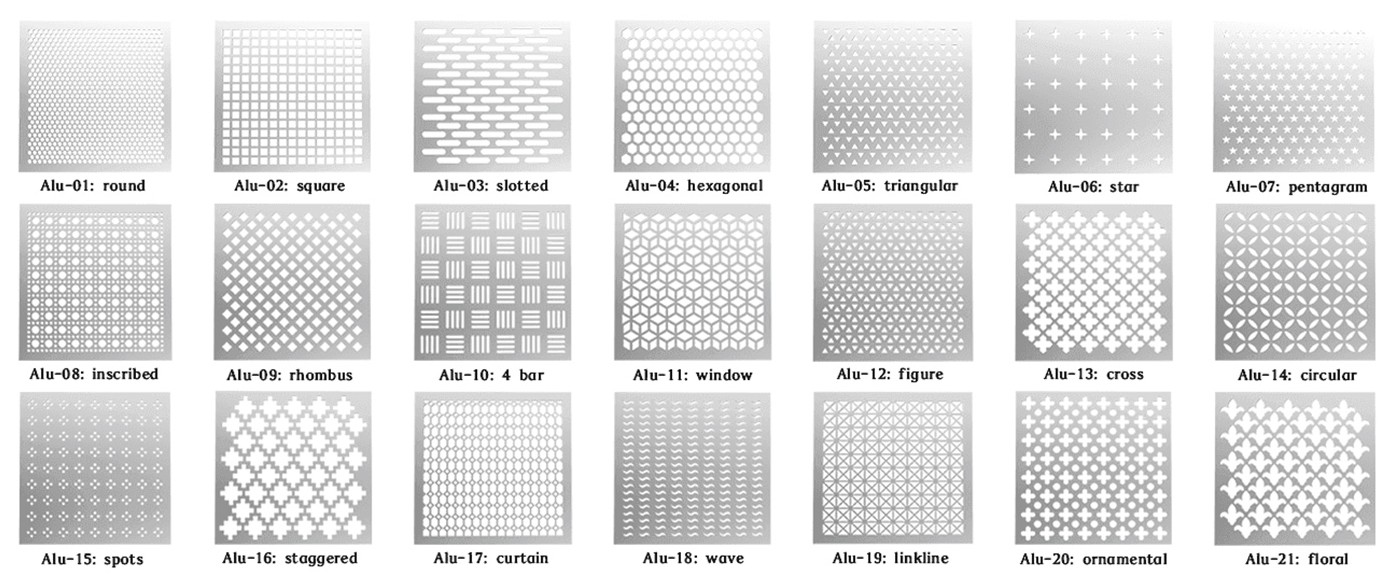

Best-selling Hole Patterns
Application

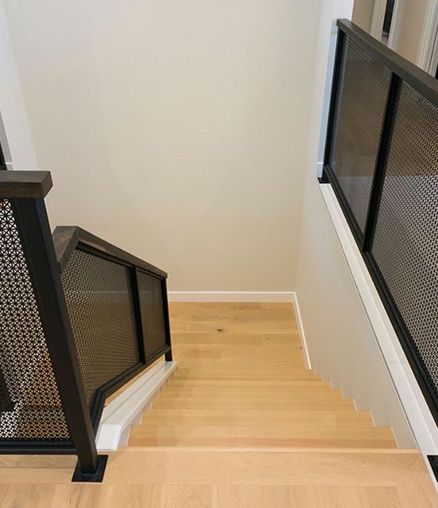

Security and Protection

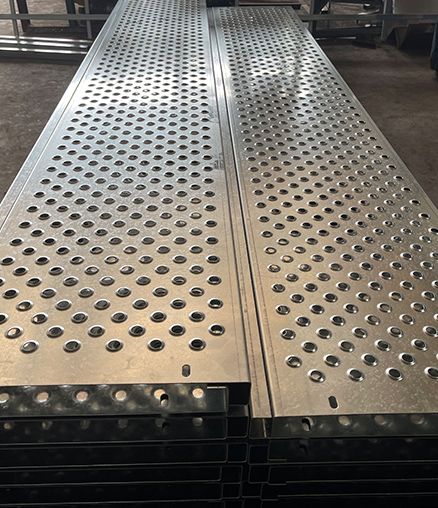

Punching Anti-skid Plate
Punching anti-skid plate mainly includes crocodile mouth hole type anti-skid plate, O-shaped hole anti-skid plate. Drum-type anti-skid plate, etc. For other types or new types of anti-skid plates, we can make molds according to customers' drawings, which can be processed into stair treads, steps and aisle channels, etc.

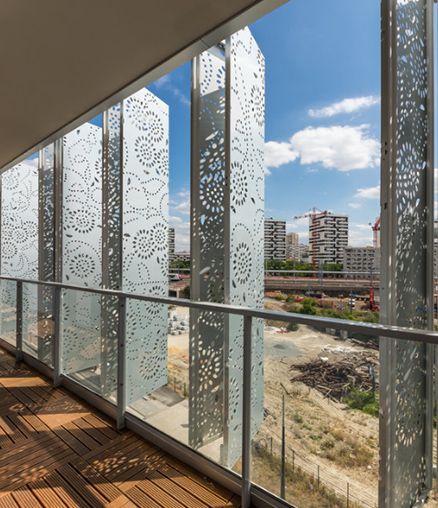

隔墙
隔墙在室内装饰中起着至关重要的作用。它经常出现在办公区、餐厅、客厅、展览空间或绘图与用餐之间的隔断设计中。

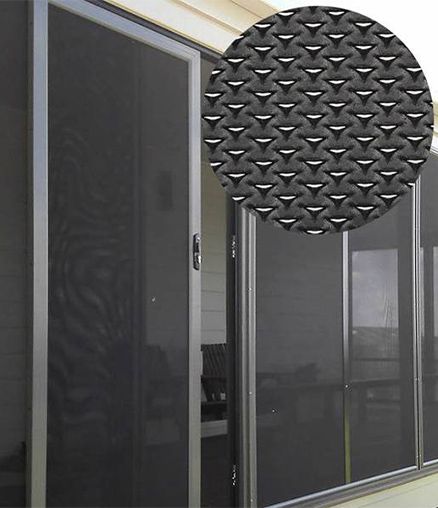

铝板雨幕网
铝板雨幕网由铝材质拉伸网制成。它的结构比编织丝网窗纱更坚固，重量也更轻，表面涂层采用阿克苏诺贝尔户外粉。铝板雨幕网广泛用于窗纱、防盗门、装饰屏等。它符合澳大利亚标准。

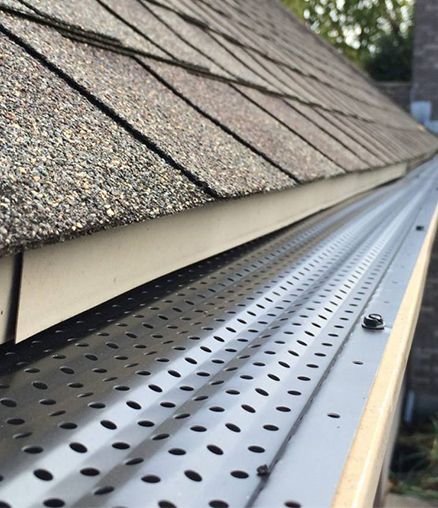

天沟网
挡叶板，也称为排水沟盖，设计用于干燥表面上讨厌的树叶、树枝、松针和其他碎屑。
